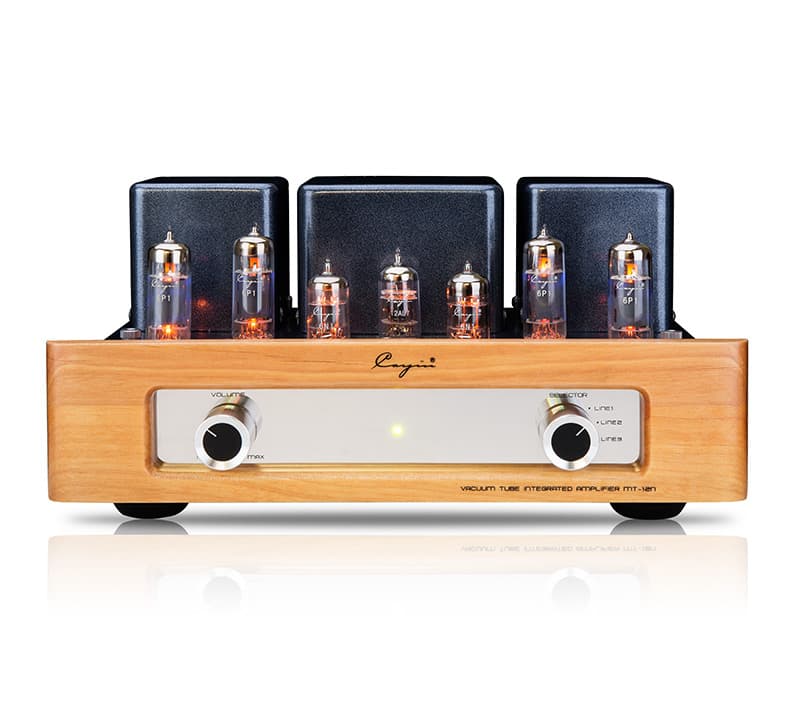

The Cayin MT-12 N is a full amplifier in the classic, but no frills design. The front panel of the 2 x 9 Watt tube device consists of solid real wood with chrome insert. The housing with its three encapsulated transformers radiates in noble anthracite lacquer. Especially with 8 Ohm speakers with high efficiency, the MT-12N reveals an impressive fine resolution and generous room image.
The Class A / B circuit was built with one 12AX7, two 6N1 and four 6P1 tubes.

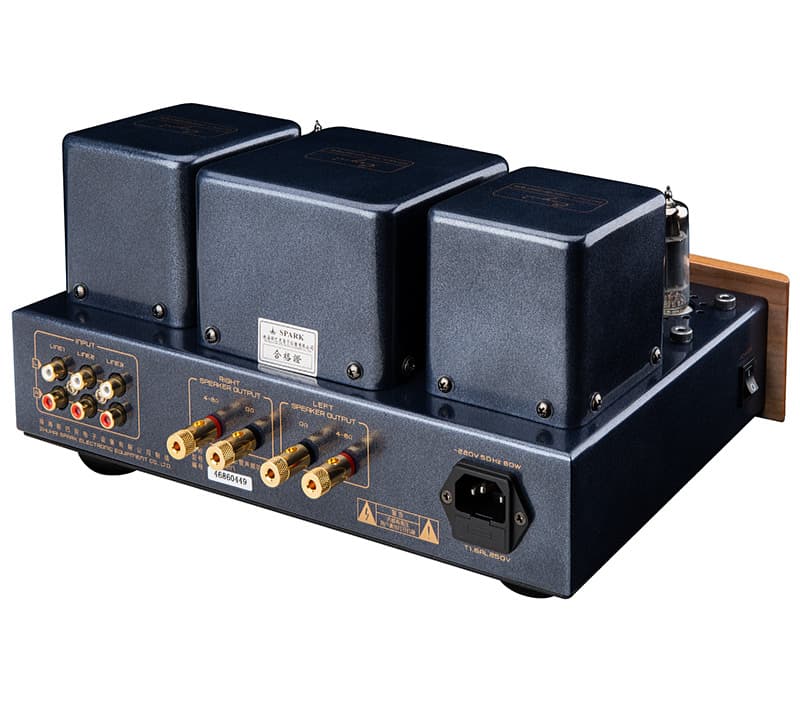

The Cayin MT-12 N offers separate taps for 4- or 8-ohm speakers as well as three line inputs with solid RCA jacks.
Technical Specifications
| Type of device | Integrated amplifier |
| Frequency Range | 10Hz - 35kHz (-3dB) |
| Harmonic distortion (THD) | 0.5% (1kHz) |
| Signal to Noise Ratio | 86 dB |
| Input Impedance | 100k Ohm |
| Input Sensitivity | 260mV |
| Tubes | 1 x 12AU7, 2 x 6N1, 4 x 6P1 |
| Inputs | 3 x line |
| Circuit | Class A / B |
| Housing Color | Black |
| Front Panel | Real wood and chrome |
| Speaker Impedence | 4 ohms - 8 ohms |
| Output power (RMS) at 4 and 8 ohms | 9W + 9W |
| Maximum power consumption | 80VA |
| Mains Voltage | 230V AC / 50Hz |
| Dimensions (W x D x H) | 330mm x 245mm x 160mm |
| Mass | 8.3 kg |
