HIGH DAMPING MODULAR POWER STAGE

The power amplification circuitry of the device is directly mounted on a custom-made, gold anodized heat sink, providing efficient heat dissipation. The power stage features two pairs of power EXICON MOSFETs, which are driven in Class AB to ensure optimal performance.

​

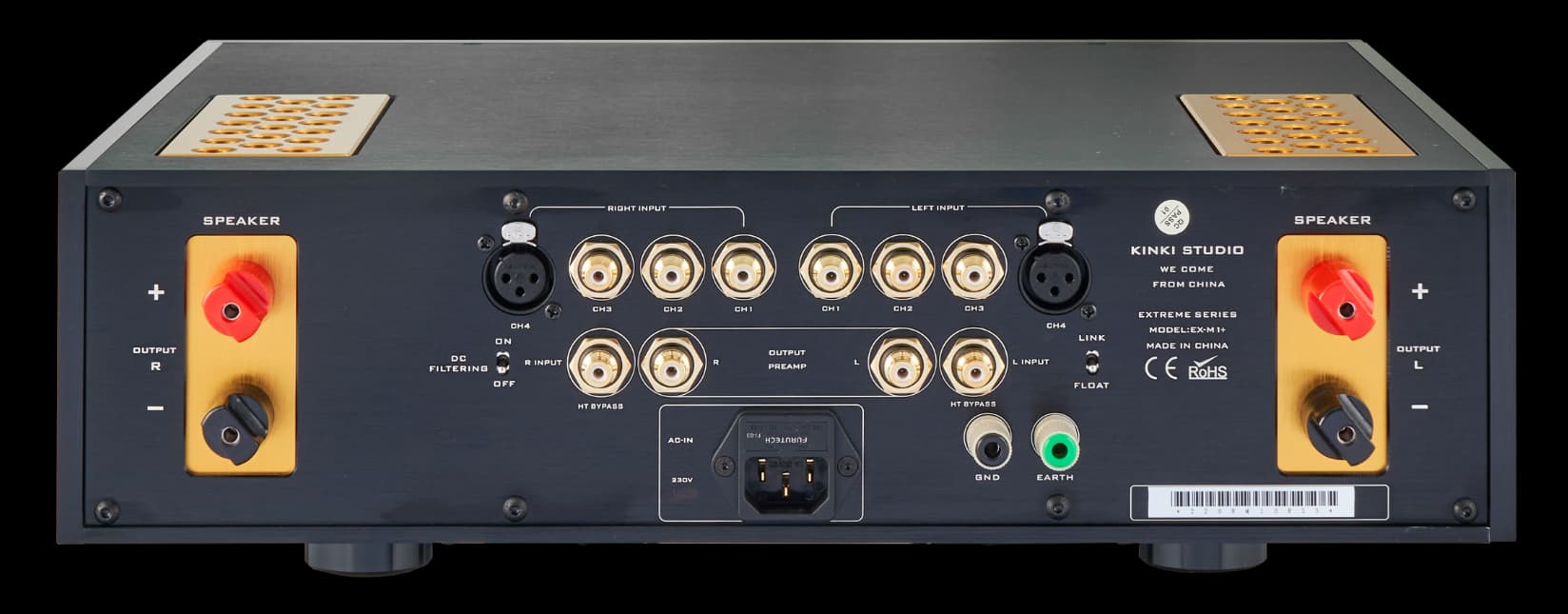

The device features two identical power stage modules that are arranged on the left and right sides of the chassis. These modules deliver exceptional power to the two channels, providing 215 watts into 4-8 ohms, ensuring reliable and high-quality audio performance.

The EX-M1+ is designed with a high damping factor, which allows for the full potential of the loudspeakers to be unleashed and for optimal sonic performance. The device features high power rail supplies that deliver fast and high recovery DC supply to the power stage, contributing to the overall high-quality audio performance.

​

The device is also designed with an ultra-high slew rate and is DC-coupled, meaning that there are no capacitors in the signal path. This design feature results in exceptional acoustic performance, with neutral, transparent sound quality, exceptional detail, dynamic range, and ultra-fast transient response.

CRAFTED TO PERFECTION

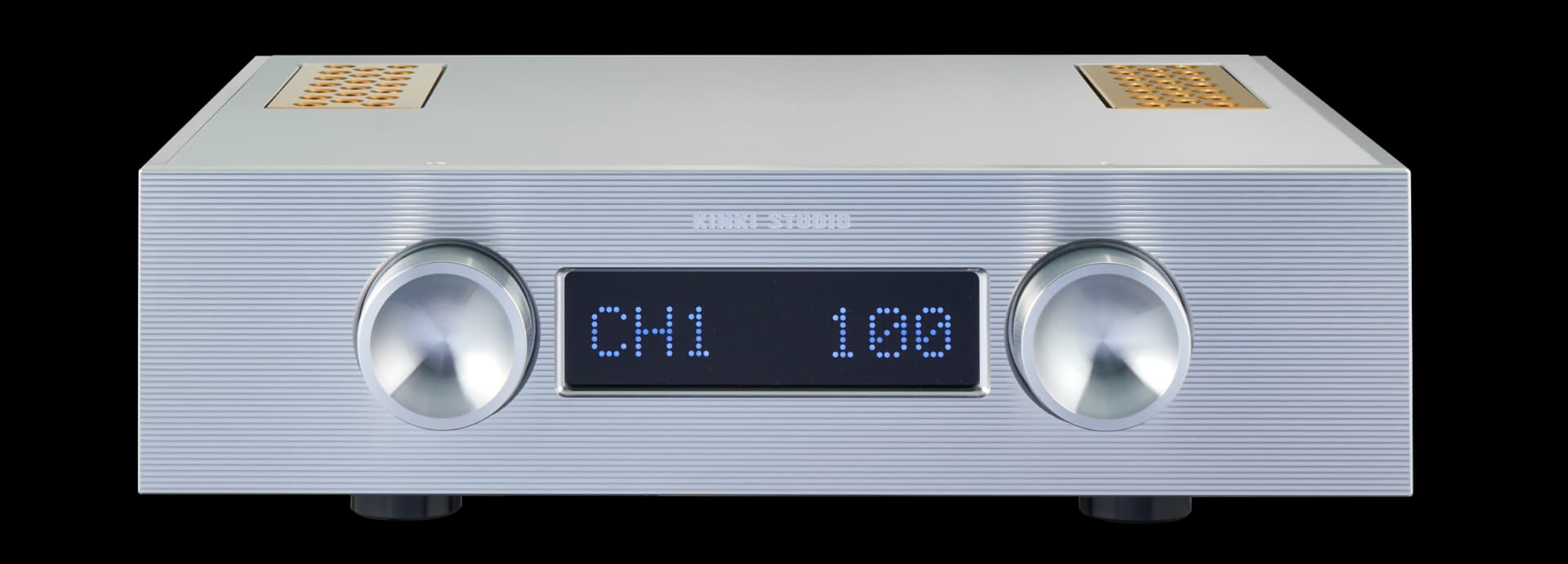

The EX-M1+ boasts an impressive 215 watts RMS power output into 8 ohms, making it one of the few integrated amplifiers in its price range capable of such driving capability. With both channels driven, it can easily power any type of loudspeaker.

​

The sound signature of the EX-M1+ is characterized by a focus on neutrality and musicality, with the goal of achieving rich tonal quality, vivid sound imaging, exceptional detail, high resolution, and dynamic range. These sonic characteristics are the result of careful component selection, thoughtful design, and meticulous tuning, resulting in the distinctive sound signature that is a hallmark of KINKI STUDIO.
