Plinius Hautonga Integrated Amplifier

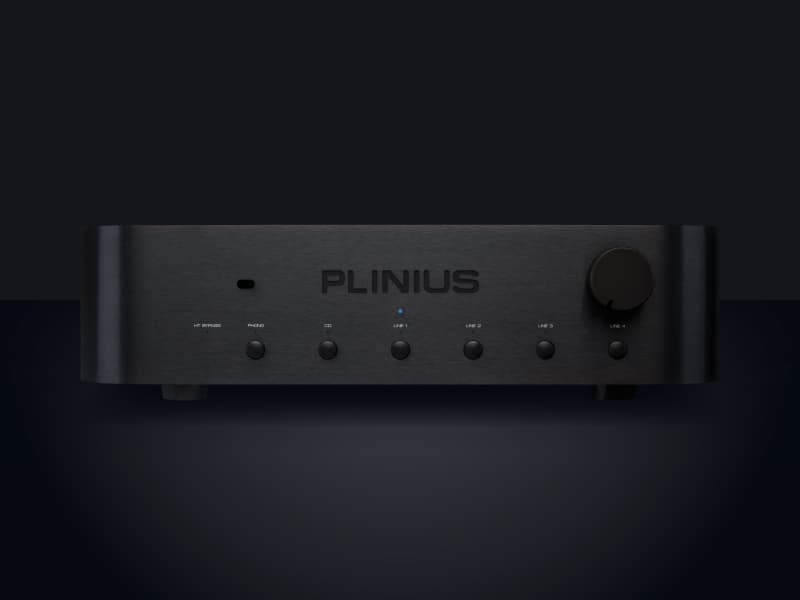

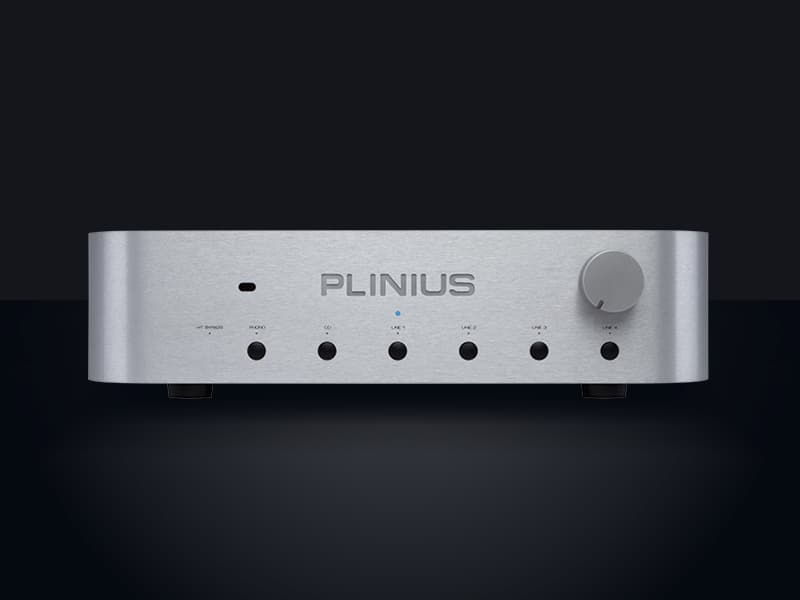

The versatile Plinius Hautonga integrated amplifier is a perfectly equipped and well balanced piece that derives from preceding development in earlier Plinius integrated amplifiers. The aesthetic is the distinctive Plinius rounded front and it is available in silver or black linished anodised finish.

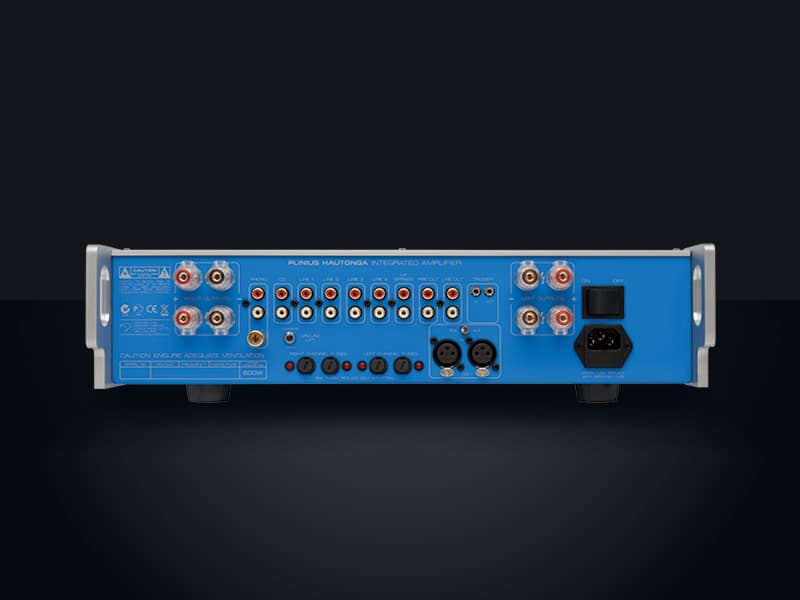

The rear panel has five line level RCA inputs with Phono RCA and a balanced XLR pair additional as standard. There is a Pre Out for those that only want to use the pre-amp stage and the Line Out connection for archiving or other ancillary equipment. Trigger in and out connectors provide for multi-room or home theatre simplicity.

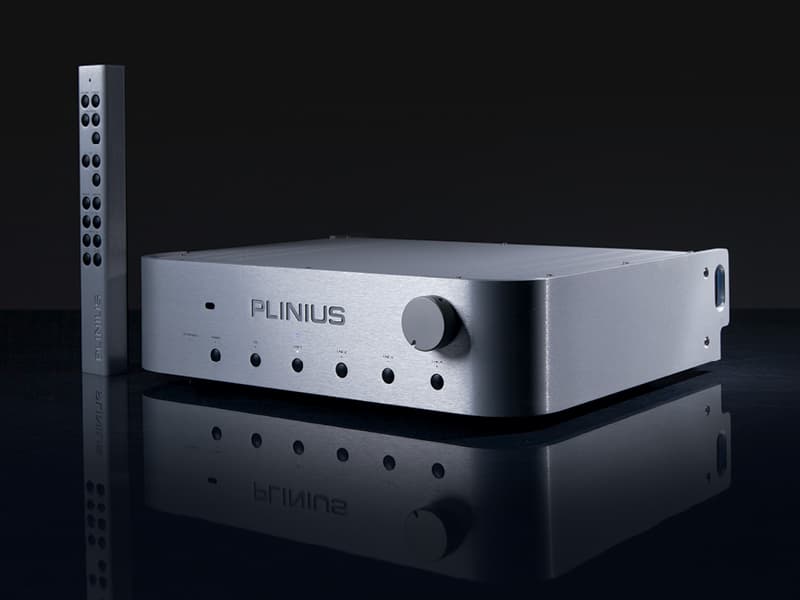

A full function remote lets you scroll through inputs from your seat. HT Bypass, standby mode for true low power operation that keeps the circuit active to deliver peak performance with minimal delay, mute and volume controls, display brightness adjustment and the full complement of CD player functions are all available from the remote.

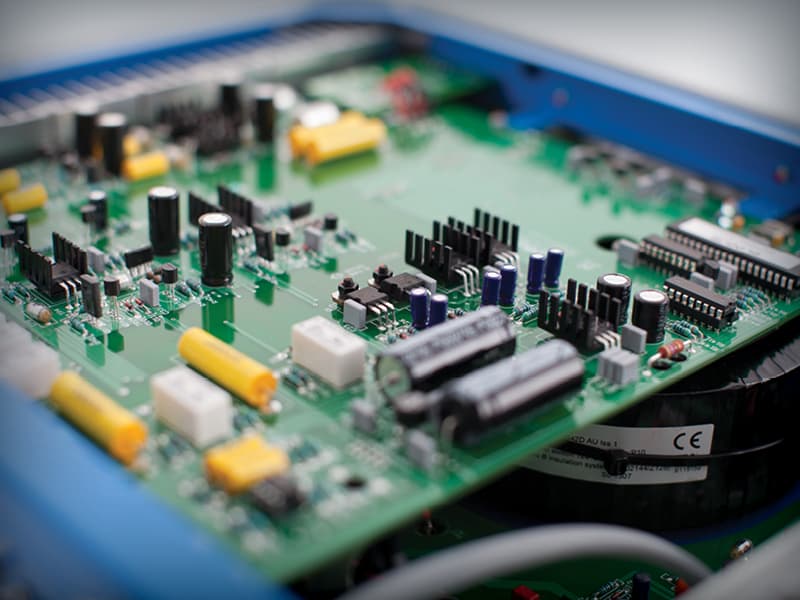

Careful attention has been paid to signals and circuit layout with short signal paths, optimal component placement and wiring specification working in harmony to extract exciting depth and detail from any musical recording.
Taking integrated refinement to a new level, the Plinius Hautonga is an amplifier that has set new standards for performance, ease of use and reliability.
Technical Specifications
- POWER:
200 watts RMS per channel into 8 ohms.
280 watts RMS per channel into 4 ohms.
Both channels driven from 20Hz to 20kHz at less than 0.2% total harmonic distortion
- FREQUENCY RESPONSE:
20Hz to 20kHz Β±0.2dB
-3dB at 5Hz and -3dB at 70kHz
- DISTORTION:
Typically <0.05% THD at rated power
0.2% THD and IM worst case prior to clipping
- CURRENT OUTPUT:
40A short duration peak per channel
Fuse protected
- SLEW RATE:
50V/Β΅s
- HUM & NOISE:
90dB below rated output 20Hz to 20kHz unweighted
- INPUT IMPEDENCE:
47k ohms all inputs
Phono adjustable to 47k ohms, 470 ohms,
100 ohms,47 ohms, 22 ohms
- RATED PRE OUT LEVEL:
1.5V RMS into 47k ohms or higher
- PRE OUT SOURCE IMPEDENCE:
Typically 1.5k ohms
- PRE OUT MINIMUM RECOMMENDED LOAD:
47k ohms
- LINE OUT LEVEL:
190mV at 200 ohms
- GAIN:
Line inputs to speaker out: 40dB
Phono Input To Pre-Out: 66dB on high gain, 60dB on low gain
- POWER/CURRENT CONSUMPTION:
600W
0.4A (92W)
Class AB Idle 0.14A (32W) Standby
- DIMENSIONS:
Height: 120mm
Width: 450mm
Depth: 400mm
Weight: 14kg
