Cayin CS-100DAC DAC & Preamplifier
Dual ES9038PRO DAC with selectable 6922EH tube or solid-state output, six digital inputs, PCM768/DSD512 and balanced preamp outputs.
Highlights
- Systems requiring integrated streaming or headphone output
- 2 × ESS chips operating in mono mode
- Dual Timbre Output
- 4 × 6922EH tubes or solid-state buffer
- Hi-Res Decoding
- PCM 768kHz / Native DSD512
- Six Digital Inputs
- USB, I²S, AES, BNC, RCA coax and optical
- Digital Filters
- 7 PCM and 4 DSD filter options
- DAC & Preamp Modes
- Fixed/variable RCA and balanced XLR outputs
Cayin CS-100DAC DAC & Preamplifier
Dual ES9038PRO DAC with selectable 6922EH tube or solid-state output, six digital inputs, PCM768/DSD512 and balanced preamp outputs.
€3980.00
Includes 20% VAT
Points earned with this purchase19,900 points (€199.00 value)
In Stock
Usually ships within 24 hours.
2-Year Warranty & 18-Day Money Back Trial
- Free EU Shipping
- Free Returns
- Secure Payment
System Matching Guide
Optimal For:
High-end digital systems needing tube and solid-state DAC outputs
Not Ideal For:
Systems requiring integrated streaming or headphone output
Power Consumption: medium
Complete Your Digital Source
Pair with the CS-100DAC via USB or compatible Cayin I²S for network music, local files and high-resolution playback.
Highlights
- Systems requiring integrated streaming or headphone output
- 2 × ESS chips operating in mono mode
- Dual Timbre Output
- 4 × 6922EH tubes or solid-state buffer
- Hi-Res Decoding
- PCM 768kHz / Native DSD512
- Six Digital Inputs
- USB, I²S, AES, BNC, RCA coax and optical
- Digital Filters
- 7 PCM and 4 DSD filter options
- DAC & Preamp Modes
- Fixed/variable RCA and balanced XLR outputs
CAYIN CS-100DAC DUAL TIMBRE DAC & PREAMPLIFIER

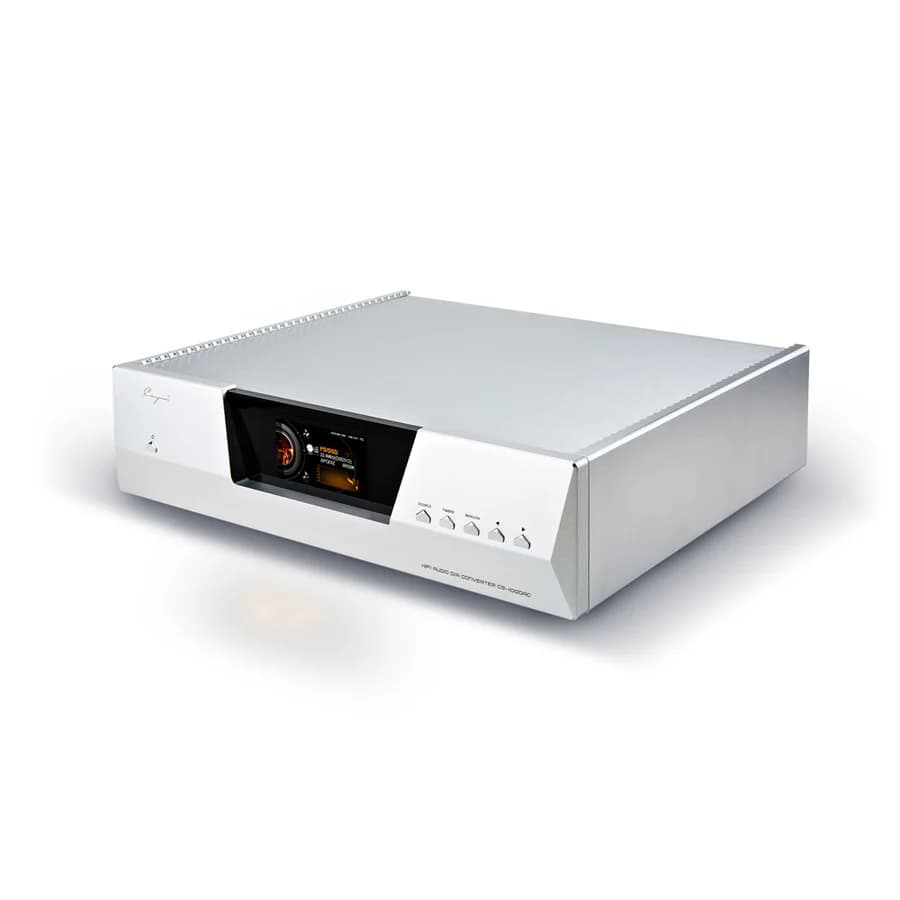

The Cayin CS-100DAC is a high-end digital-to-analogue converter combining dual ESS SABRE DAC architecture with selectable vacuum tube and solid-state analogue output stages. Designed for versatile two-channel Hi-Fi systems, it offers six digital inputs, balanced and single-ended outputs, high-resolution PCM and DSD decoding, and variable-level preamplifier operation.
DUAL ESS ES9038PRO CONVERSION
Two ESS ES9038PRO DAC chips operate in mono mode, with independent digital-to-analogue conversion for each stereo channel. The fully balanced architecture incorporates dedicated current-to-voltage conversion circuitry and precision Accusilicon oscillators for accurate digital clocking.
The CS-100DAC supports PCM up to 32-bit/768kHz and native DSD512 through USB and I²S, accommodating high-resolution music sources and compatible digital transports.
SELECTABLE TUBE AND SOLID-STATE TIMBRES

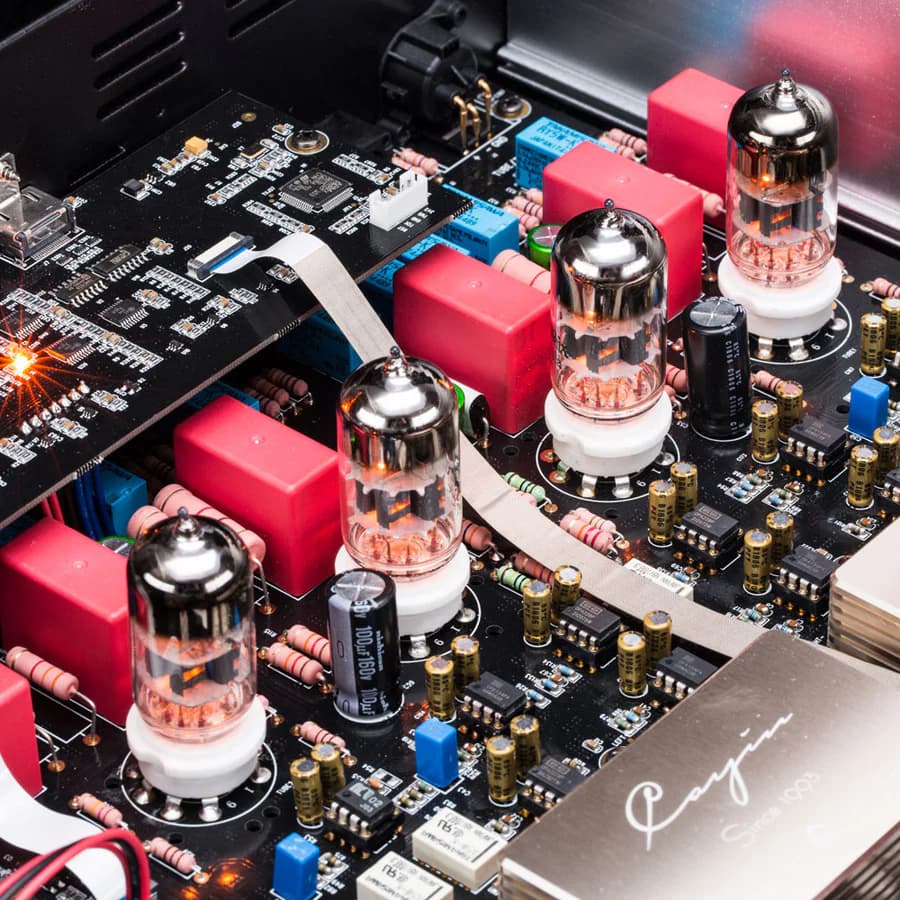

A defining feature of the CS-100DAC is its selectable analogue output architecture. The vacuum tube stage uses four 6922EH tubes, providing an alternative signal path to the dedicated solid-state buffer.
Both timbres are available through RCA and balanced XLR outputs. This allows listeners to select between two analogue circuit configurations without changing the DAC or external equipment.
SIX DIGITAL INPUTS AND SELECTABLE FILTERS

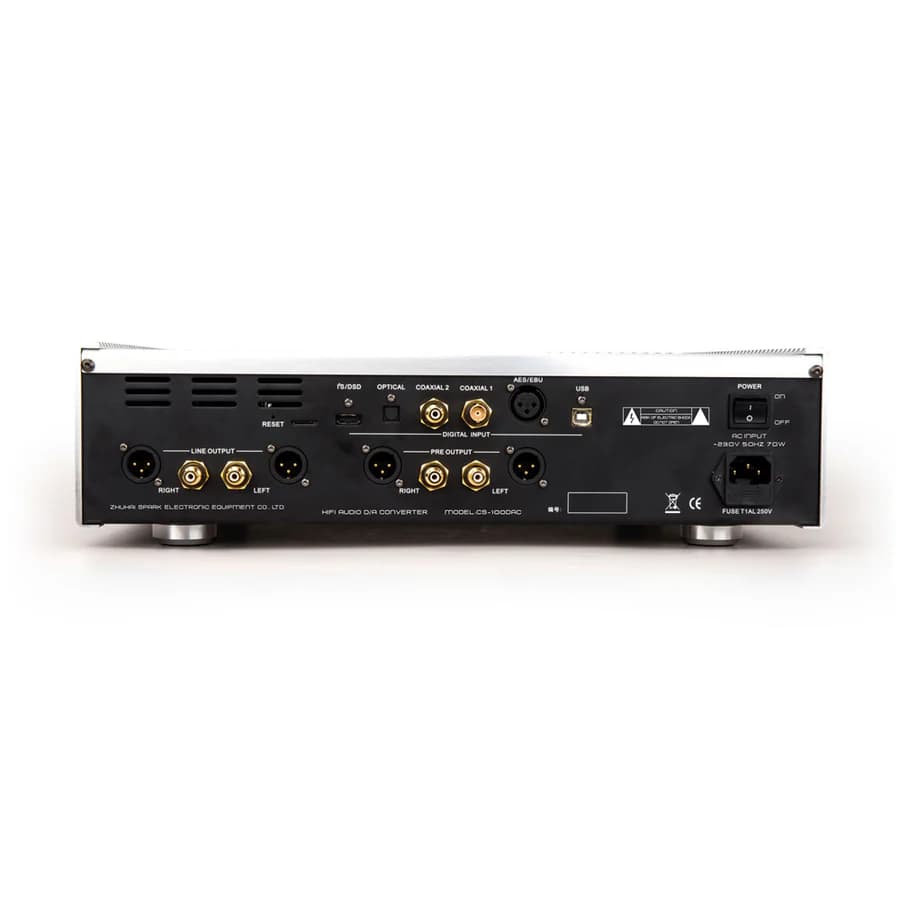

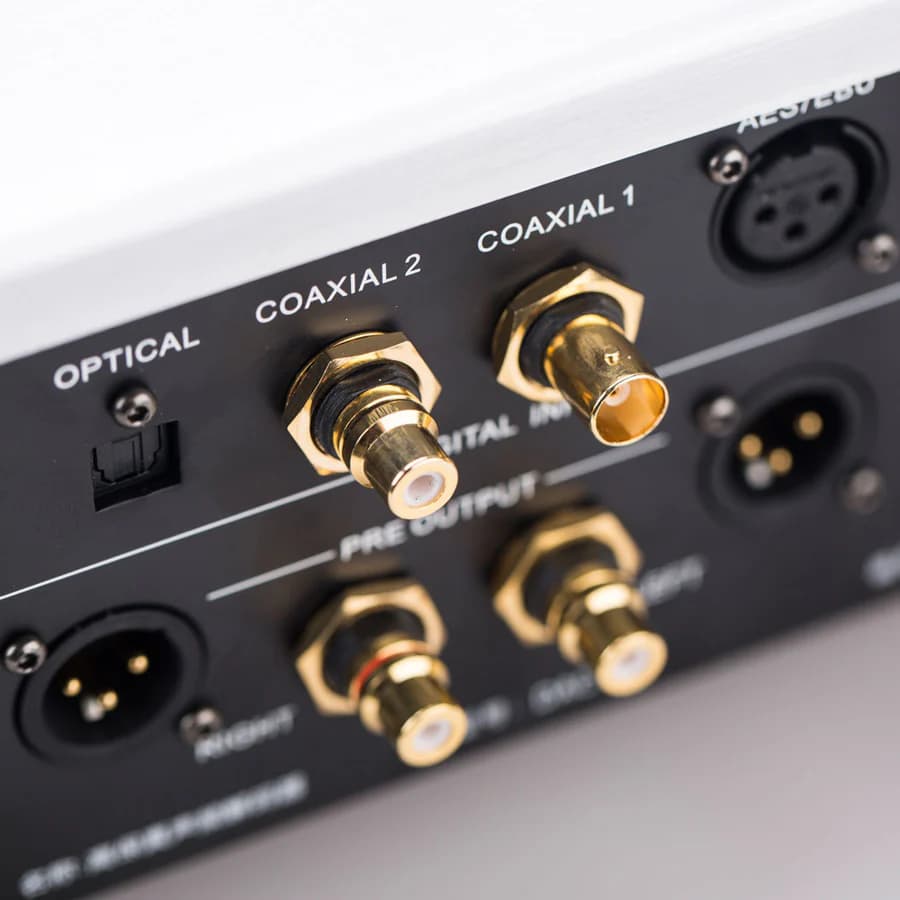

Digital connectivity includes asynchronous USB Audio, HDMI-based I²S, AES/EBU, BNC coaxial, RCA coaxial and optical Toslink inputs.
The CS-100DAC also provides seven selectable PCM digital filters and four DSD filters, allowing adjustment of the conversion characteristics for different source material and listening preferences.
The I²S input requires compatible HDMI-I²S signal mapping and should not be confused with a conventional HDMI audio input.
FIXED OUTPUT AND PREAMPLIFIER OPERATION
Both RCA and balanced XLR connections support fixed-level LINE OUT and variable-level PRE OUT operation. The latter allows the CS-100DAC to function as a digital preamplifier, controlling compatible power amplifiers or active loudspeakers directly.
The output voltage and impedance differ between the tube and solid-state circuits. Dedicated power supply sections and extensive mute protection help maintain stable operation when switching between operating modes.
PREMIUM POWER SUPPLY AND CONTROL
Separate toroidal power transformers supply the digital and analogue sections, supported by multiple low-noise regulation stages. The machined aluminium chassis provides structural rigidity and shielding against external interference.
A 3.95-inch AMOLED display presents input, playback and operating information, while the supplied infrared remote allows convenient control of input selection, timbre, filters and output settings.
