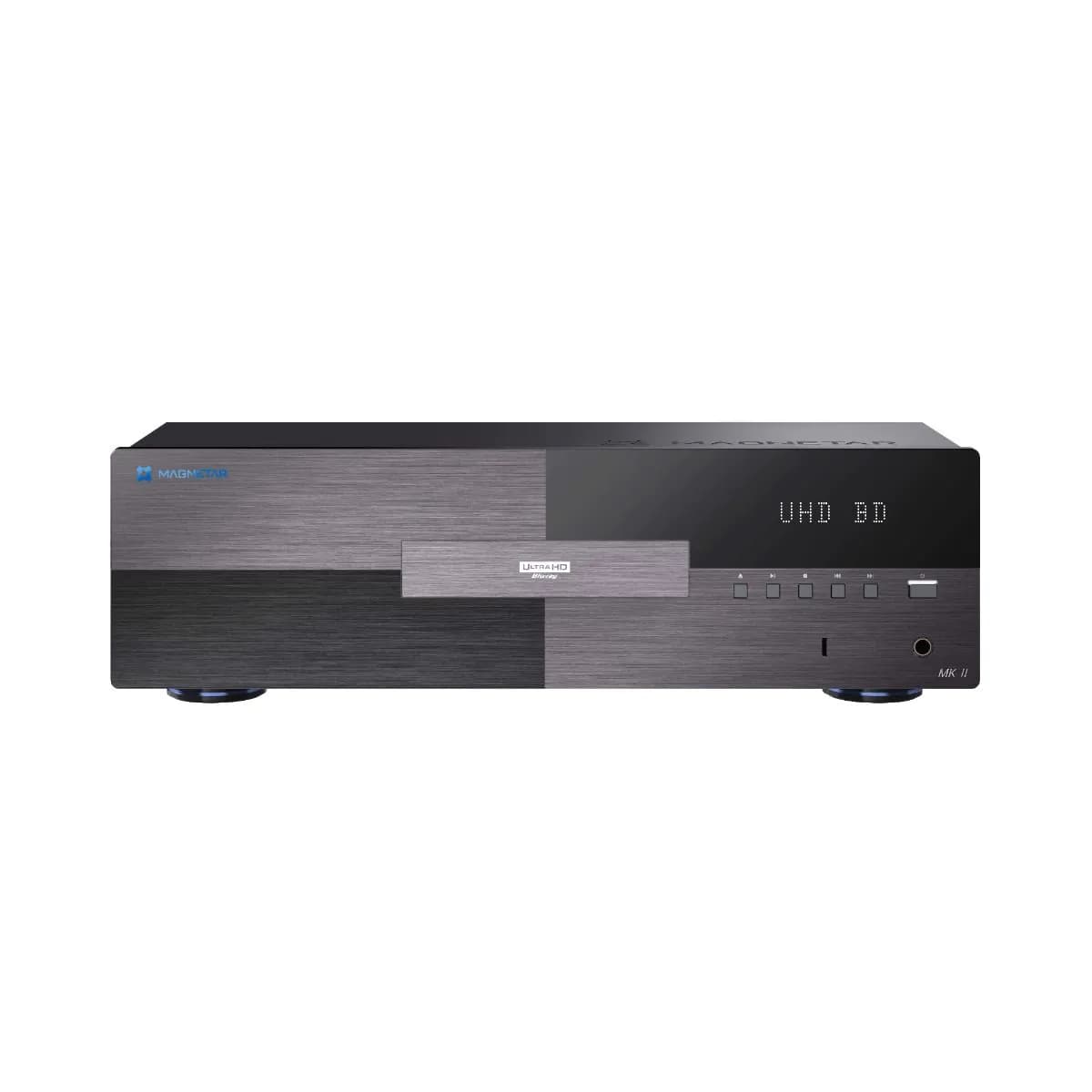

UDP900 MKII
Advanced Image/Audio Processing Technology

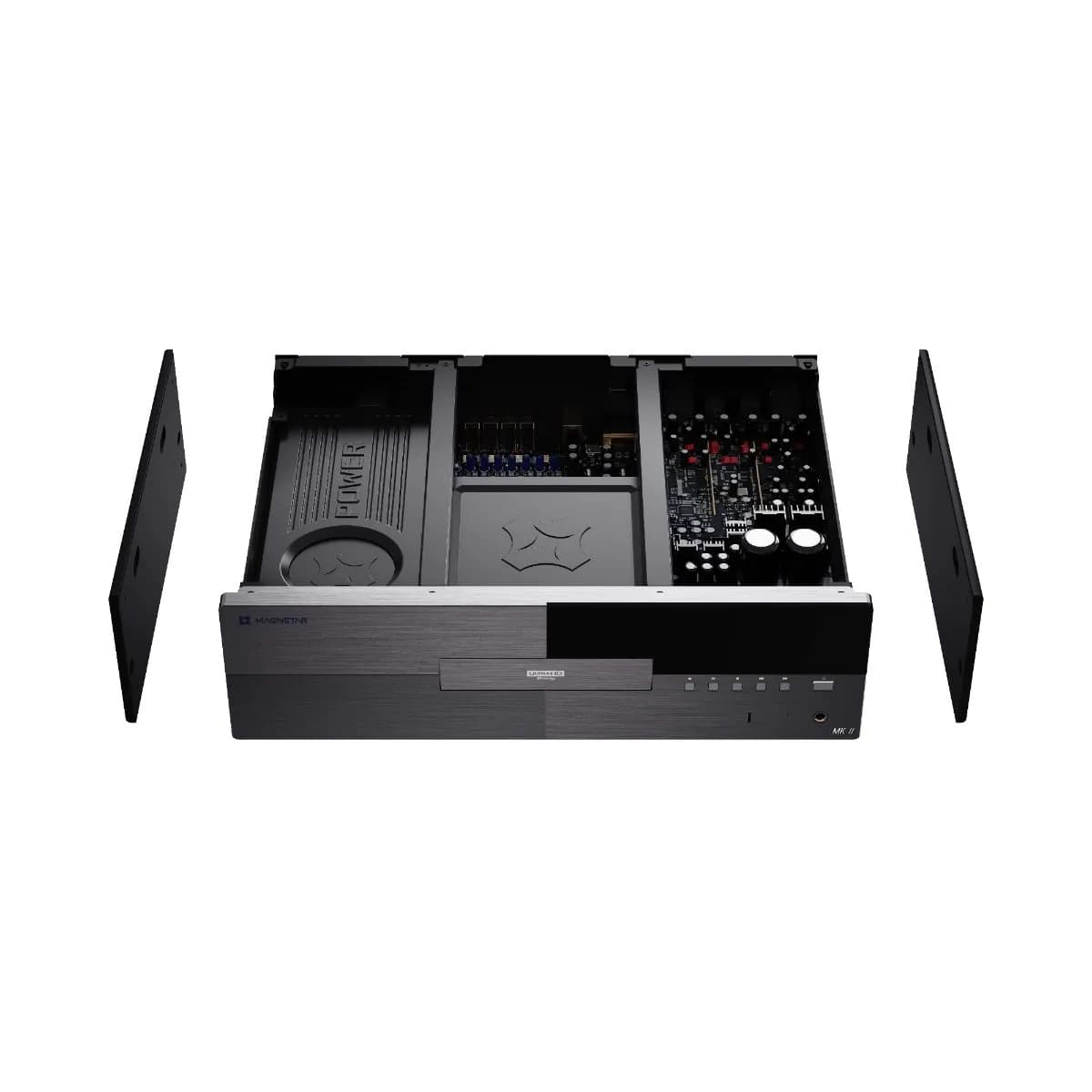

High-quality copper-core wires are used throughout the device, the in-machine PCB connectors have been upgraded to JST and Amphenol brands, enhancing the stability and reliability of the connections.
Exceptional Audio - Visual Experience
The ESS9038PRO D/A decoder offers stereo and multi-channel outputs. With XMOS USB Audio input capable of handling PCM768 and DSD512, UDP900 MKII offers premium audio output. The TMDS retiming function on the HDMI AUDIO port also refines audio quality.
Versatile Compatibility
Adding a USB3.0 HUB chip and redesign the USB3.0 power supply to improve the compatibility and stability of the USB3.0 port, so as to better adapt to USB flash drives and hard drives. Also enhances the stability of data transmission and increases the transmission speed, thus achieving better sound and picture effects.
USB Audio
Upgrade USB AUDIO to PCM768 and DSD512, greatly improve the audio data transmission and processing capabilities, and provide higher-quality audio output.
Specifications:
| Disc Formats | UHD Blu-ray, Blu-ray, Blu-ray 3D, DVD-Video, DVD-Audio, AVCHD，SACD, CD, Kodak Picture CD, CD-R/RW, DVD±R/RW, DVD±R DL, BD-R/RE |
| Analog Audio Output | 7.1 channel RCA, 2 channel RCA and Balanced XLR |
| Digital Audio Output | Optical, Coaxial, HDMI |
| HDMI audio | up to 7.1 channel /192kHz PCM, up to 5.1 channel DSD, Bitstream |
| HDMI video | UHD 23.976/25/30/50/59.94/60hz, 1080 I/P, 720P, 576I/P, 480I/P, source direct |
| Frequency range | 20Hz ~ 50kHz (±0.01dB) |
| Signal-to-noise ratio | ≥120dB (RCA); ≥130dB (XLR) |
| Total harmonic distortion + Noise | ≤ 0.0005% |
| Output level | (RCA) ≤3Vrms; (XLR) ≤6Vrms |
| Dynamic range | ≥120dB (RCA); ≥130dB (XLR) |
| Channel separation | ≥110dB (RCA); ≥130dB (XLR) |
| Power supply | AC 100-240V ~, 50/60Hz |
| Power consumption | <30W, Standby<0.5W |
| Size | 445mm x 321mm x 133mm |
| Weight | 15.4kg |
| Operating temperature | 5°C~ 35°C (41°F ~ 95°F) |
| Operating humidity | 15% ~ 75% |
