INTEGRATED AMP
EX-M1

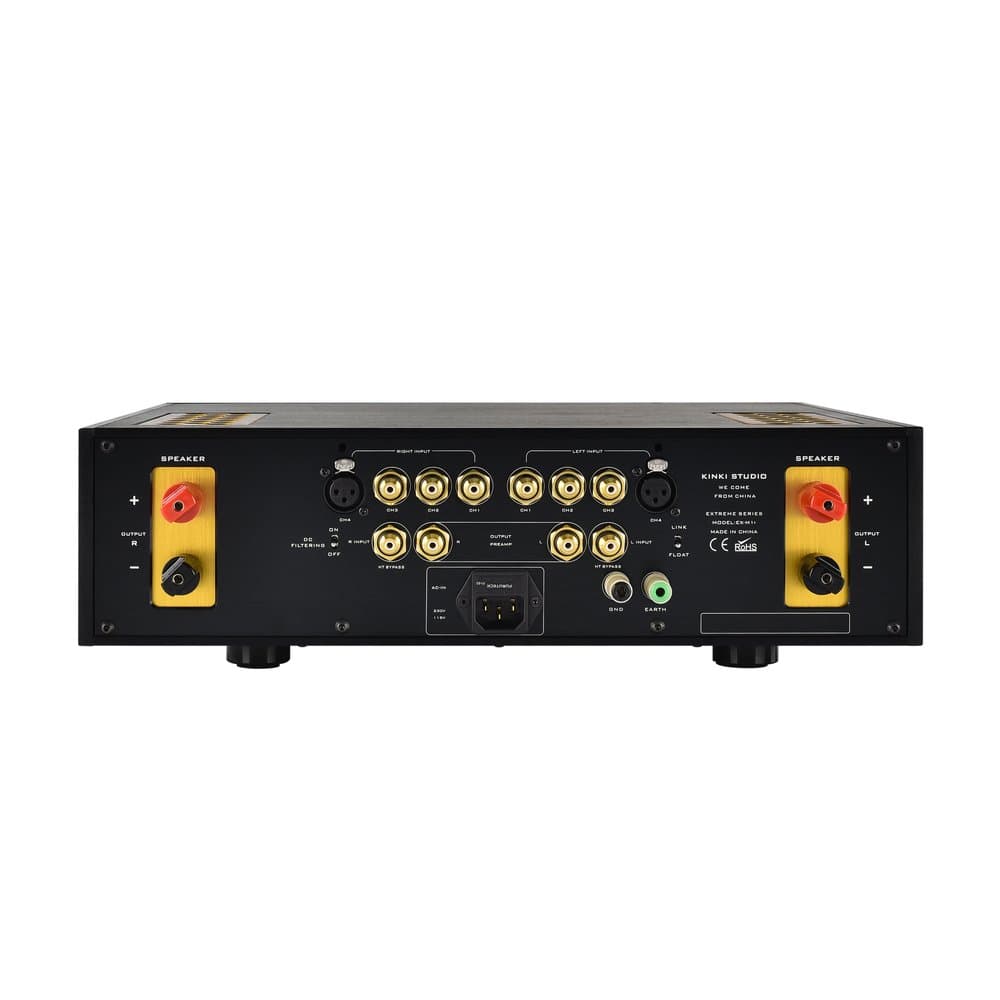

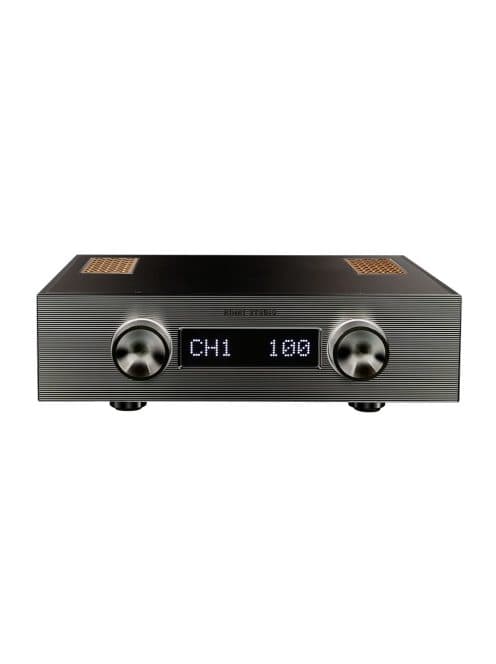

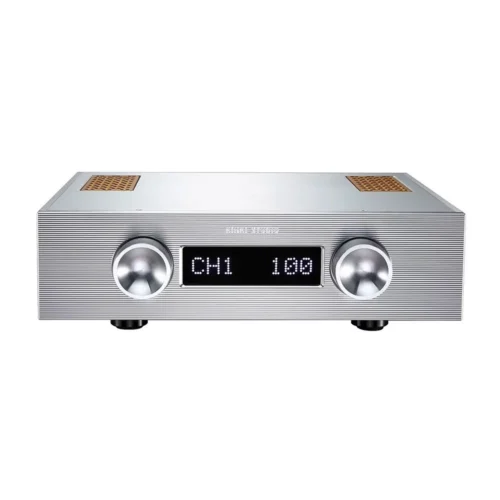

The EX-M1 is a part of the EX Series, which has been designed to provide a balanced midrange and smooth extension at both the high and low ends, resulting in high-quality sound reproduction. This model is a dual mono design contained within a single chassis and is fully modular.
It is rich in tonal quality, dynamic range, and high resolution, with a silky smooth volume control system that utilizes the MUSES volume control.
This volume control system is known for its precision and accuracy in adjusting volume levels, due to its use of precision-matched resistors.
JRC MUSES 72320 VOL CONTROL
Unlike most amplifiers that use a potentiometer for volume control, the EX-M1 utilizes an advanced JRC MUSES72320 2-channel electronic volume control that is microprocessor-controlled.
This volume control is optimized for high-end audio and professional audio applications, and is designed with advanced circuitry and layout to ensure optimal performance.
The MUSES72320 is known for its low noise and low distortion characteristics, and it employs a resistance ladder circuit for precision volume adjustment.
QUALITY AND PERFORMANCE OVER COST
The EX-M1 is a cost-no-object design, as evidenced by its use of an extremely high-cost 0.2µm gold-plated printed circuit board (PCB).
The designer has taken into account the limitations of a typical circuit board, and has increased the soldered area at each joint while also adding as much shielding as possible. This ensures optimal performance of the PCB and contributes to the overall high-end audio quality of the device.
In addition, the EX-M1 features two 400VA encapsulated transformers, one for each of the left and right channel power supplies. The dual mono power rails have been designed in such a way as to avoid interference between channels, resulting in improved channel separation and overall audio performance.
This product was designed with the purist, perfectionist, and minimalist in mind, and engineered to meet the highest standards of quality.
HIGH DAMPING MODULAR POWER STAGE
The power amplification circuitry of the device is directly mounted
