Hear every detail in stunning clarity and fidelity
To commemorate DENAFRIPS’s 12 years of digital audio excellence, the Terminator II 12th Anniversary Edition features performance enhancements one would never thought possible.
If you’re a music lover and you want the best listening experience, one of the key ingredients in the quality of your sound is the digital-to-analog converter or DAC.
Terminator II 12th DAC is a trickle-down of the Terminator Plus 12th DAC. The high similarity at a lower price tag is certainly a big welcome to the price-conscious audiophile community.
High Purity Gold · Silver · Copper · Alloy Copper Foil Shielded O-Core AC Transformers
Gold x Silver x Copper Alloy O-Core AC Transformers
Clean power equates to the foundation of good sound. A dedicated linear power supply unit, designed and encased in a 1.5mm thick metal alloy enclosure, can be found underneath the DAC motherboard with an additional steel plate divider between the DAC motherboard and PSU box – for extra EMI/EMF shielding.
The box-within-box design, not only does it eliminates the inherited problems of the dual box solution, it presents the details and attention DENAFRIPS put into the Terminator II/Plus 12th DAC.
Beefy dual O-Core Transformers for Digital and Analog sections, Ultra-Low ESR, Long Endurance Reservoir Capacitors, and multi-stages super linear power supply, ensuring ultra-precision, low ripple power supply charging up DAC.
The TERMINATOR-II/PLUS Digital Processing Board and R-2R ladder network arrays are completely isolated. The two boards are physically linked by the OCXO module. The physical isolation yields even lowered noise floor and achieved a higher signal-to-noise ratio.
OVEN-CONTROLLED CRYSTAL OSCILLATORS – OCXO
“The BEST clocks are the clocks inside the DAC”.
The TERMINATOR-II/PLUS is equipped with dual OCXO operating at 45.1584Mhz, 49.152Mhz – 1024x of the based sampling rate of 44.1kHz and 48kHz. Encapsulated in a metal casing, located at the center of the DAC, these OCXOs are specially designed for high-end audio applications with ultra-low phase noise and ultra-accuracy. The dual OCXO is powered by the completely redesigned power supply circuitry (encapsulated, shielded, underneath the main boards), supplying a constant current to the OCXO. The adequate power reserves ensure the linearity and stability of the OCXO.
ADAPTIVE FIFO BUFFER RECLOCKING
The DENAFRIPS approach to address the jitters issue by the FIFO BUFFER RECLOCKING. The adaptive FIFO buffer store the digital audio data in the memory. These data are read from the memory using the ultra-low phase noise, ultra-accuracy OCXO, located right in the DAC.
The data bits are converted to analog signals by the true balanced R-2R ladder network arrays. The linearity of the conversion is guaranteed by the high-precision thin film resistors, with a low thermal effect temperature coefficient of the low 10/15ppm.
Direct FPGA processing of IIS, SPDIF Signals without intermediate converter I/C • Shorter signal path guaranteed
Optimized Critical Circuitry
Further reduces noise floor • Greater tonal density • Ultra High Resolution

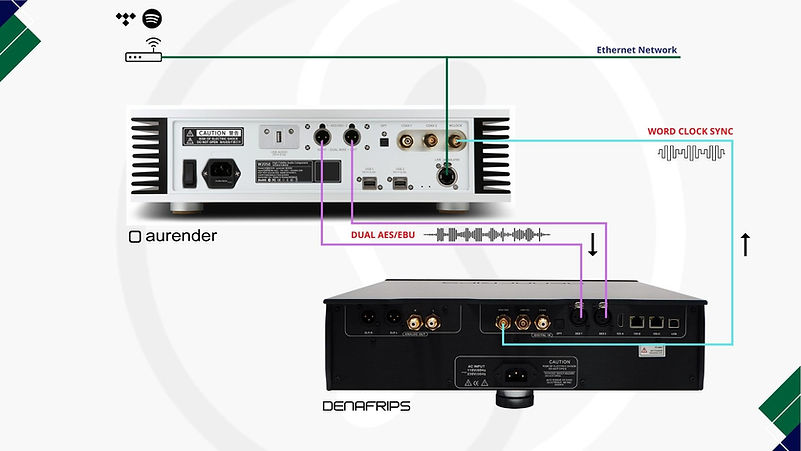

The Terminator II/Plus high-precision OCXO CLOCK-OUT can be used to synchronize the devices to support the following audio frequencies.
Equipment with matching clock input frequencies can now be synchronized with the CLOCK-OUT feature of the Terminator II/Plus DAC.
Flagship DAC · Reimagined
The excellent performance of the TERMINATOR-II 12th DAC tick most of the boxes of serious audiophiles who seek very fine musical enjoyment.
It is a state-of-the-art Digital to Analog Converter, one of the finest available on the market.
*Footers seen in the photos are after-market. Actual footers shipped with the DAC are SS spike and spike shoe.
