Plinius Kaitaki Preamplifier

While the Plinius Kaitaki preamplifier mates aesthetically and musically with the Plinius P10 power amplifier this exciting preamplifier is the perfect partner for the Plinius SA103 power amplifier used either as a stereo amplifier or in a monoblock configuration.

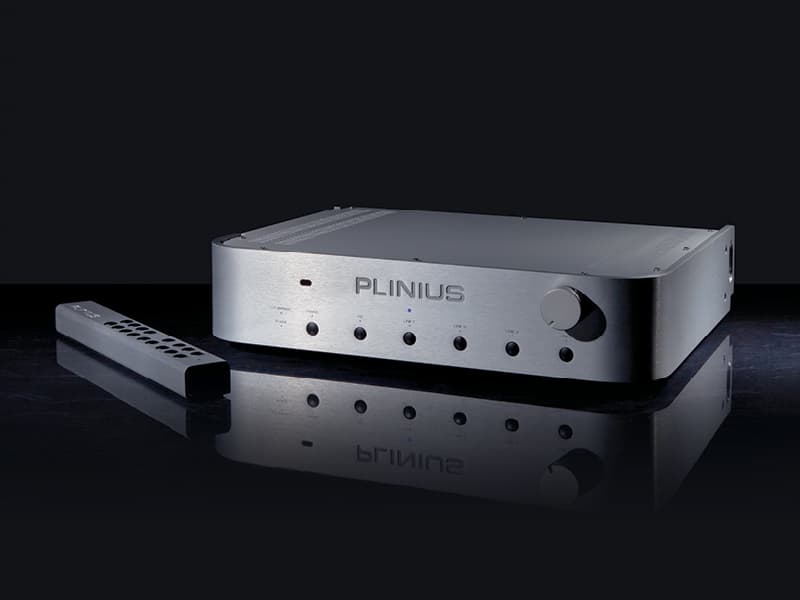

Visible controls on the Kaitaki are the rotary volume knob and source selection buttons with all other functions driven from the distinctive Plinius remote control. LED indicators on the front panel display demonstrate the source selected and status of the mute, phase and HT bypass functions.

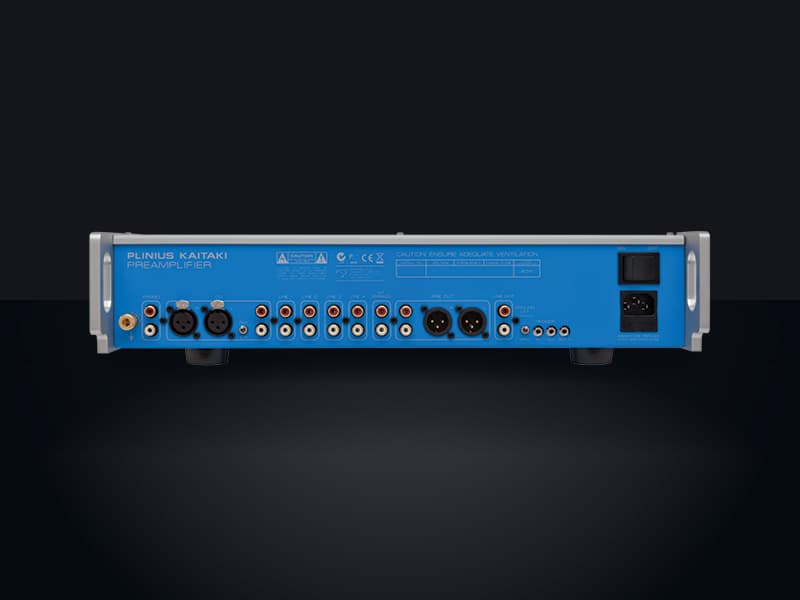

The Kaitaki will allow the connection of up to 5 source components including both balanced and single ended connection for CD. A processor loop allows integration with a home theatre system and output is available from RCA or XLR connectors. The optional adjustable phono stage model allows enjoyment of vinyl at a sophisticated level without the need to purchase a specialised phono preamplifier.

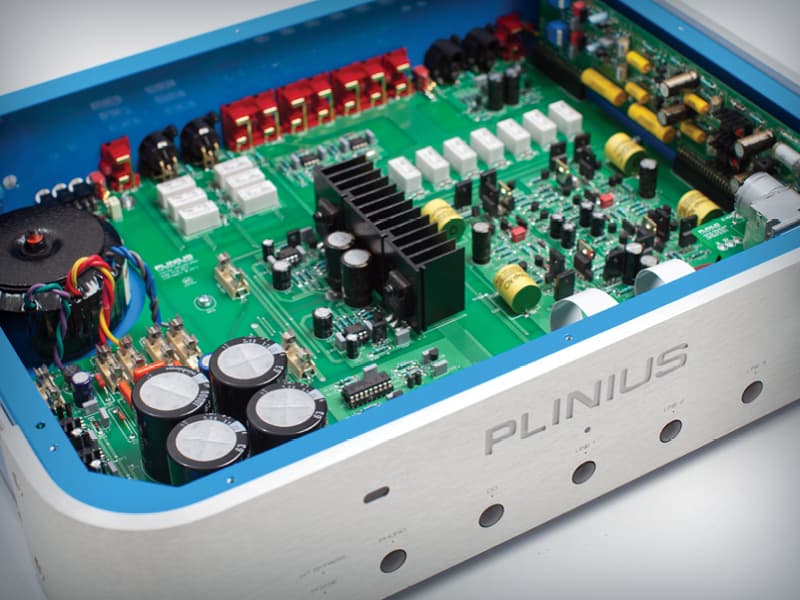

The electronics topography is derived in part from development work done on circuits for our later generation integrated amplifiers and source components, and a power supply with extremely low impedance allows the audio circuitry to deliver its best.

Features

OPTIONAL PHONO STAGE
The preamplifier can be fitted with an optional phono stage based on the Hautonga design. The Phono has two gain settings and five loading settings to allow for suitable cartridge matching.

REMOTE TRIGGER INPUT AND OUTPUT
Terminals for remote trigger connection allow a processor signal to bypass the preamplifier stage or instigate the power amp to come out of standby.

GROUND LIFT SWITCH
This allows for the signal ground to be isolated from the main chassis earth. This can assist in resolving unwanted ground loops or hum due to duplicate ground paths in some systems.

AURIC WIRING
Audience AV supply the Auric OFC wire used in the input stage of the amplifier. The Auric was chosen for its high workability and natural sound.

LINE OUT
The Line out provides a line level output, carrying the selected source signal. The Line Out allows for the signal to go on to recording equipment, headphone amplifiers or sub-woofer speakers.

RC5 INPUT
The RC5 input allows for connection to wired remote interfaces so it can be used as part of an automated system.

AURICAP CAPACITORS
Audience AV supply the Auricap XO capacitors used in key areas of the circuit. The Auricap was chosen for its superior clarity and dynamic ability.

ALUMINIUM CONSTRUCTION
The aluminium lid and panels provide a non-magnetic cover to reduce unwanted magnetic fields that can interfere with the sensitive audio signals.

Specifications

• FREQUENCY RESPONSE

20Hz to 20kHz +/- 0.2dB

• DISTORTION

<0.05% THD at rated input level

• INPUT IMPEDANCE

50k ohms

• PRE OUT MINIMUM RECOMMENDED LOAD

47k ohms

• OUTPUT SOURCE IMPEDANCE

Typically 100 ohms

• POWER/CURRENT CONSUMPTION

40W
0.10A (23W) idle/standby

• ADJUSTABLE GAIN

60dB, 66dB

• SIGNAL TO NOISE RATIO

-80dB at rated input level, A weighted
