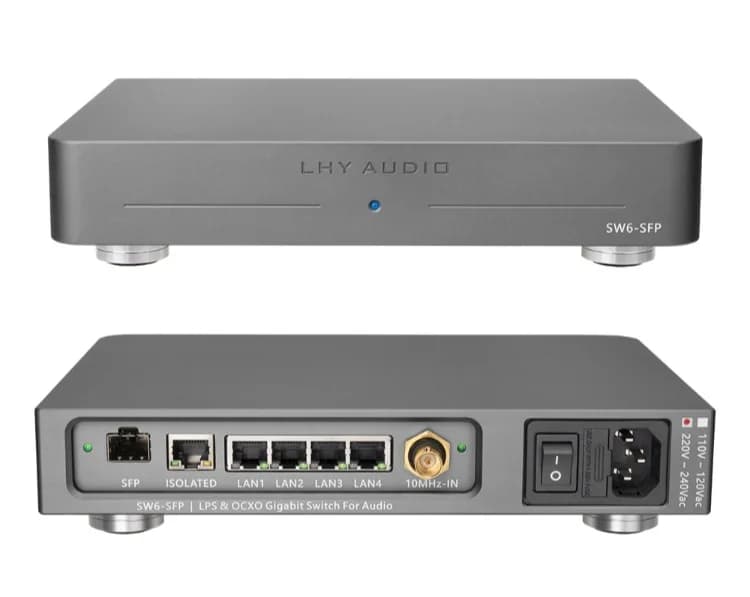

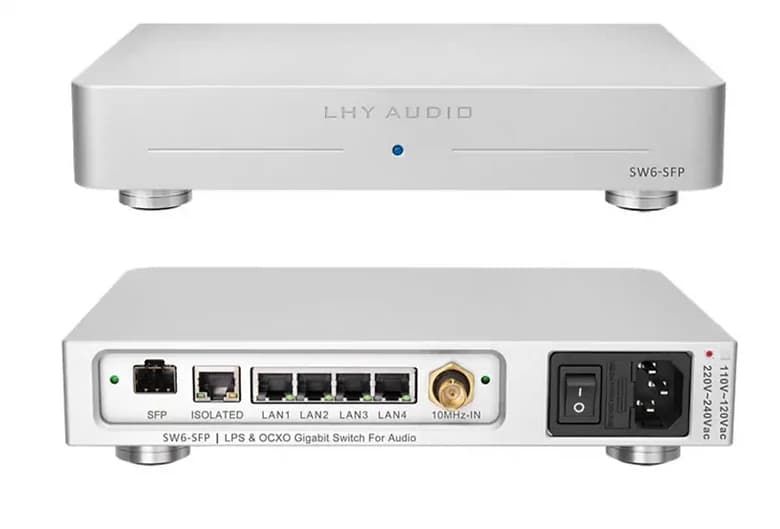

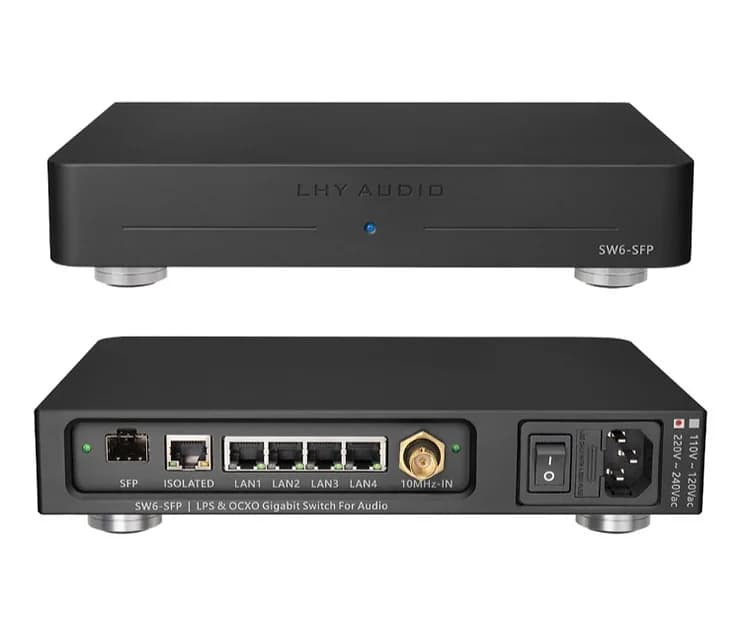

LHY SW-6





Technical Highlight:

– LHY Gigabit Ethernet Switch

– 4 x Gigabit Ports RJ-45, 1 x Isolated Gigabit Port RJ-45, 1 x SFP Port

– 10MHz OCXO Master Clock In

– CNC Aluminum Block Chassis [Gun Metal Grey/Green]

– AC Incoming: High Quality IEC with Fuse & Switch
– AC Noise Filter: UK RIFA RFI Suppression Caps & Noise Filter
– AC Transformer: High Quality Encapsulated Talema
– High Speed Rectifier
– High Endurance Reservoir Caps
– Phillips 1% Precision Resistors
– Multistage DC/DC uV-class linear power supply with noise close to 0 (lab measurable noise in the range of uV)
– Integrated Aluminium Heat-sink Chassis





OCXO

– Reclock Ethernet Data Stream by High-quality SC-CUT Oven Controlled Crystal Oscillator with ultra-low noise PLL circuitry

– Noticeable improvement in Clocking precision and lower jitters

– Master Clock 10MHz Input via BNC connectors



Master Clock In

– Input: Sinewave/Squarewave, 50Ω



What’s in the package:
1. LHY SW-6 Network Switch
2. Power cord



Dimension: 240W x 50H x 175D (mm)

Weight: 2.05kg
