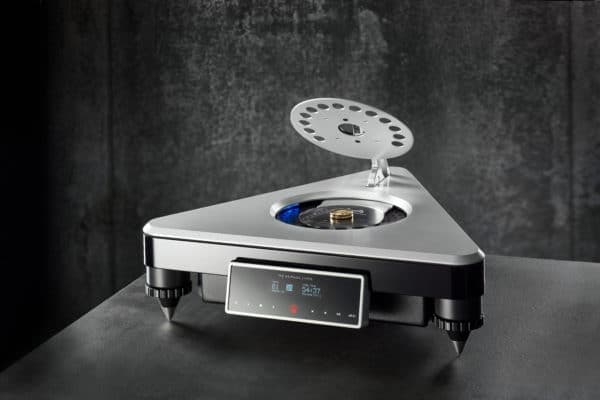

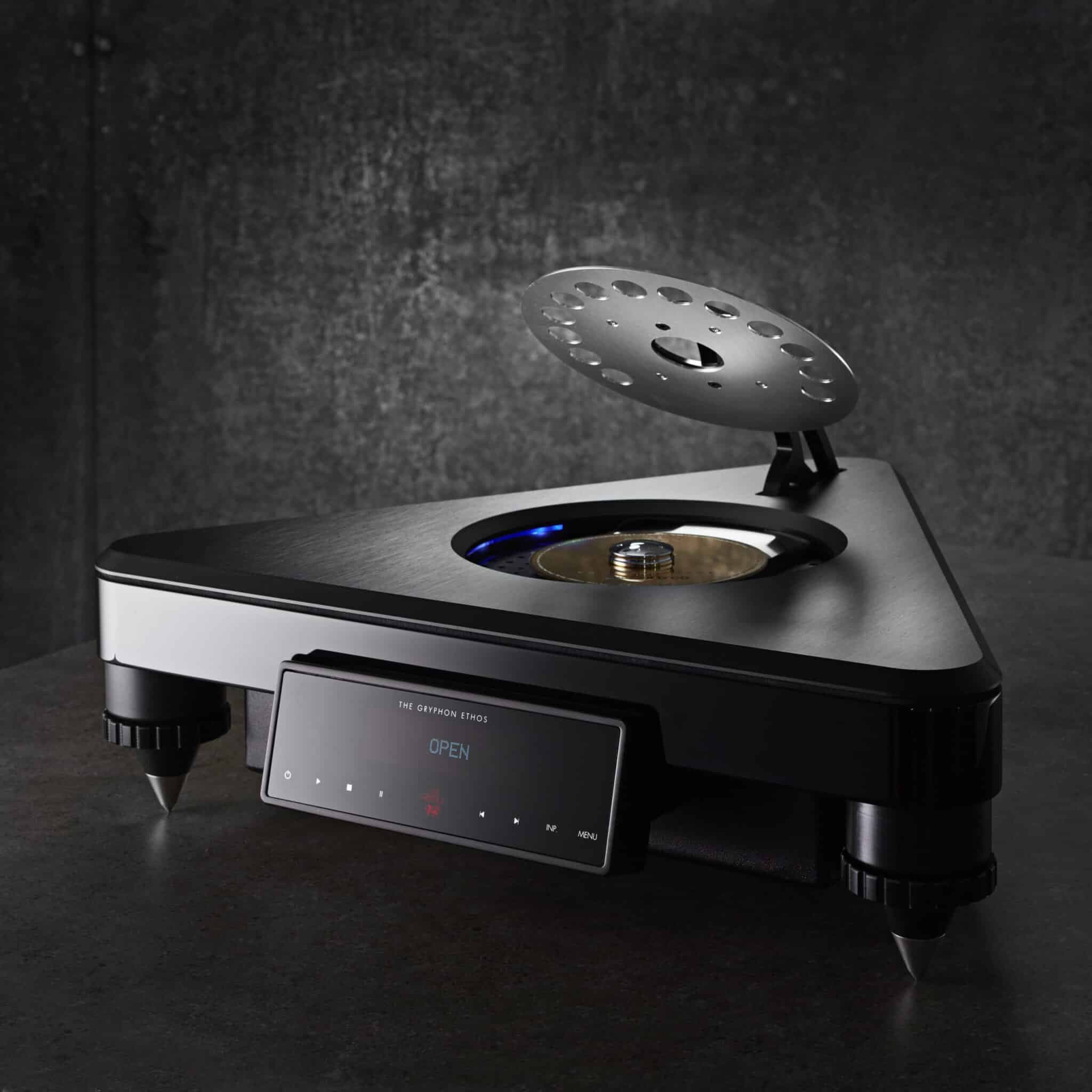

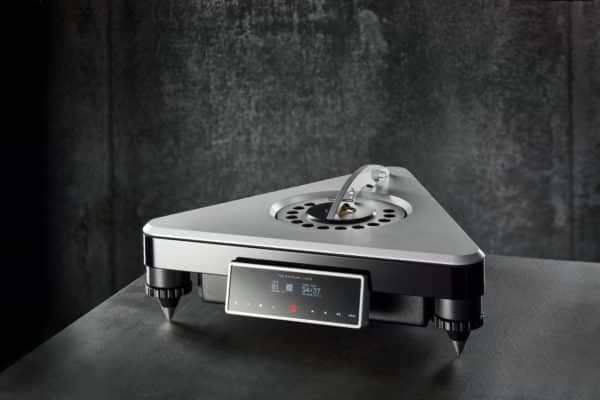

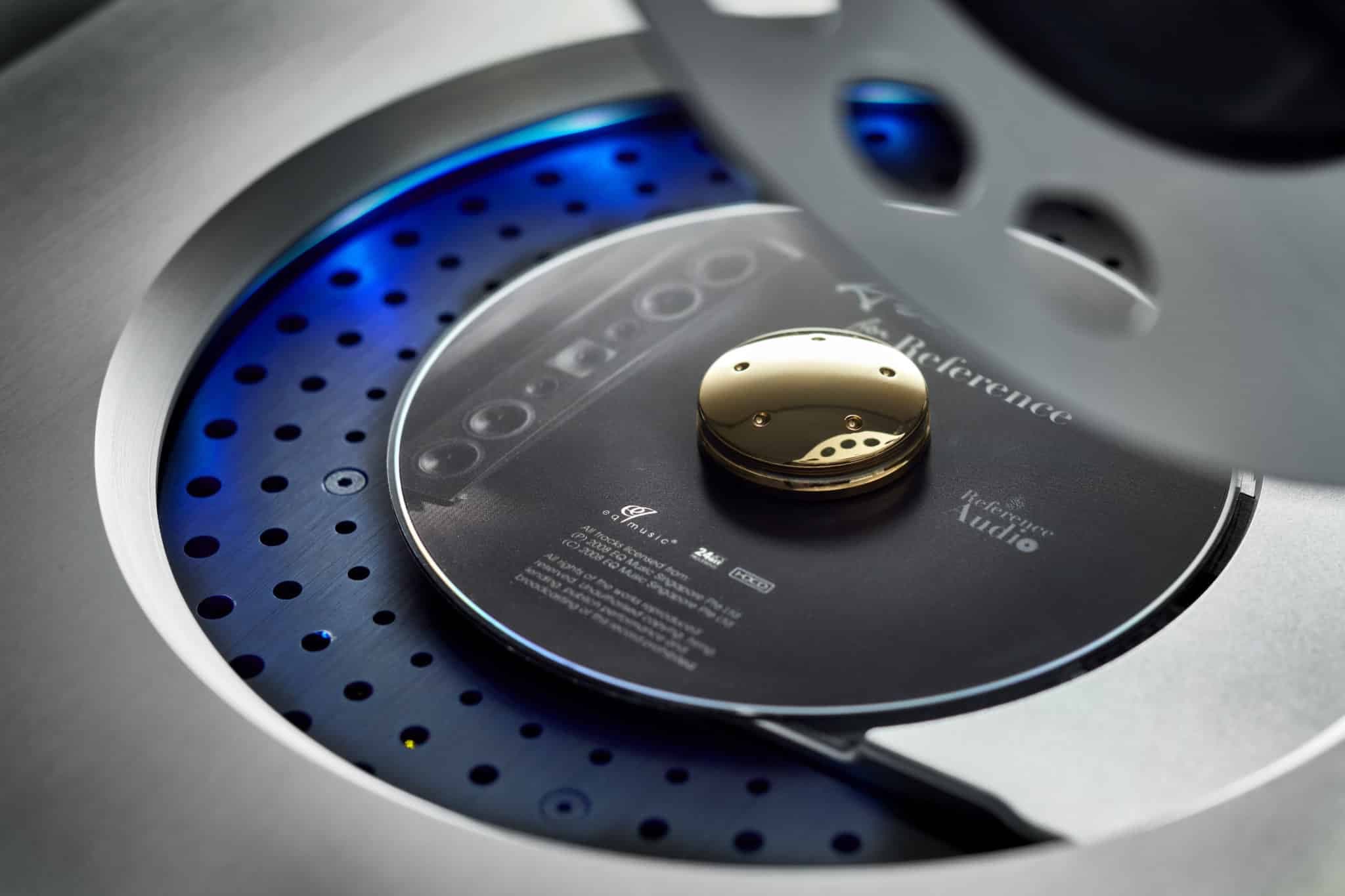

Gryphon Ethos – CD Player/DAC Ex-Demo
Condition of both colours: 9/10 as new

PRODUCT DETAILS

Electrical

Balanced analog/DAC circuit- YES

Converters- 2 x ES9038PRO 32bit/768KHz

Formats- PCM & DSD

PCM via input 1 to 4, Fs min./max.- 22kHz to 192kHz

PCM via USB input, Fs min./max.- 32kHz to 384kHz

DSD via USB input- DSD64, DSD128, DSD256, DSD512

Output level balanced, max- 4,3Vrms, +/-6,08Vpp

Output level single ended, max- 2,15Vrms, +/-3,04Vpp

S/N Unweighted, 20-20000hz, < -117dB

S/N Weighted, A-weighted, < -120dB

Distortion (THD+N)-
<0,0070% @ 0dB
<0,0025% @ -6dB

Channel Separation- Infinite

Input impedance, balanced (AES/EBU)- 110Ohm

Input impedance, single ended (SPDIF)- 75Ohm

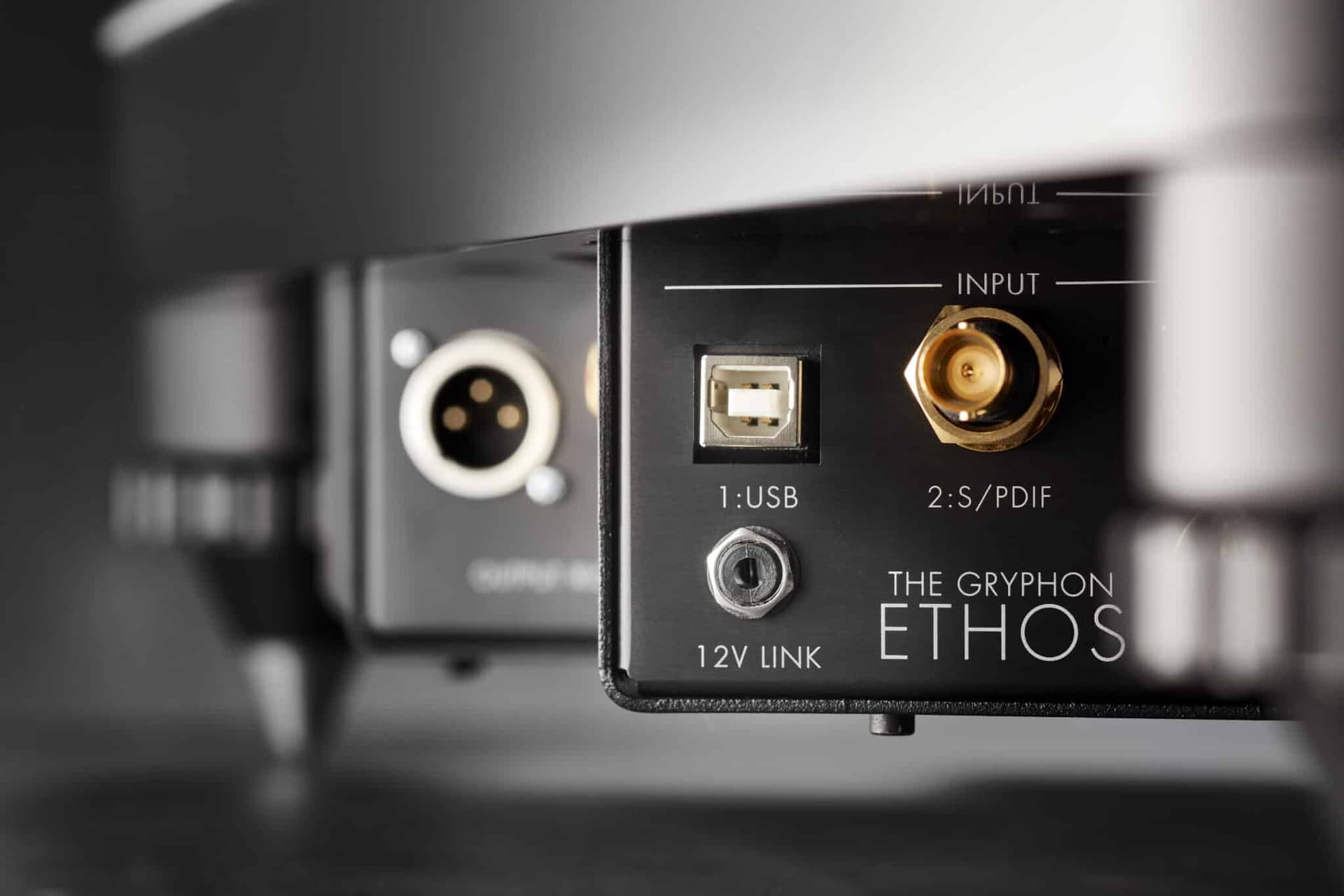

Balanced digital (AES/EBU) input- 1

Single ended digital (SPDIF) inputs- 1

Digital balanced output (AES/EBU)- 1 x XLR (110Ohm)

Analog output impedance (20-20000Hz)- 300Ohm

Balanced analog outputs, pr. channel- 1 x XLR

Single ended analog outputs, pr. channel- 1 x RCA

Bandwidth (-3dB), max.- 0 – 192kHz

Power consumption (Stand-by)- <0.5W

Power consumption (Maximum)- 39W

Power consumption (Idle)- 34W

Power Supply Capacity- 2 x 20.000 uF

No. of AC inlets / cable plug type- 1x IEC C13

Mechanical

Size (W x H x D) cm, net- 48 x17.6 x 45.3

Weight, net- 13.7 kg
