Fosi Audio P3
Price is without EU VAT ( specific for each country added to check out )
WARRANTY: 3-YEAR DENAFRIPS & 2-YEAR OTHERS
FOSI AUDIO P3
Tube Preamplifier 2x JAN5654W Headphone Amplifier Bluetooth 5.1 aptX aptX HD
The Fosi Audio P3 is a compact, high-performance preamplifier. It features two JAN 5654W tubes and a QCC3031 Bluetooth receiver chip. A 3.5mm headphone jack is also available on the front panel, with volume and tone controls for bass and treble. In terms of input and output, it incorporates an RCA stereo input as well as an RCA stereo output and a 3.5mm AUX jack output on its rear panel. This preamplifier is an excellent choice coupled with Fosi Audio’s V3 amplifier.
JAN 5654W amplifier tubes
These JAN 5654W amplifier tubes ensure a coated sound reproduction with extended dynamics. You can also choose to replace them with tubes that better suit your listening preferences.
QCC3031 Bluetooth receiver chip
A Qualcomm Bluetooth 5.1 receiver chip enables you to receive high-definition Bluetooth codecs: SBC, AAC, aptX, aptX HD, aptX LL.
3.5mm headphone output
On the front of the Fosi Audio P3 is a 3.5mm jack headphone output accepting a wide range of headphones and earphones on the market with impedances from 16 to 300 ohms.

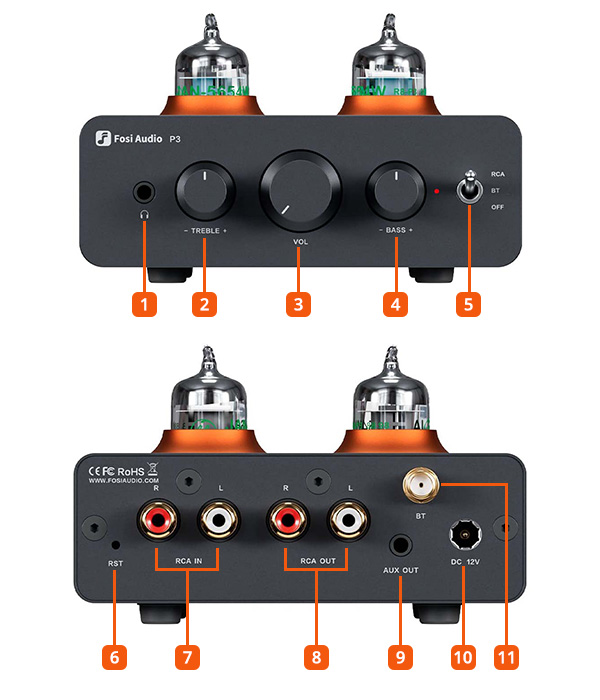

Fosi Audio P3 overview
| 1 | Jack 3.5mm headphone output |
| 2 | Treble adjustment |
| 3 | Volume control |
| 4 | Bass adjustment |
| 5 | Source selector switch |
| 6 | Reset |
| 7 | Stereo RCA input |
| 8 | Stereo RCA output |
| 9 | AUX jack 3.5mm output |
| 10 | DC12V power supply |
| 11 | Bluetooth antenna |
Technical characteristics
| Specifications | |
|---|---|
| Product type | Preamplifier Headphone amplifier |
| Input | 1x RCA stereo |
| Ouputs | 1x RCA Stereo 1x AUX jack 3.5mm 1x Headphone output |
| Tubes | 2x Tubes JAN5654W |
| Output power RMS | 250mw @16Ω 150mw @32Ω 32mw @250Ω 20mW @300Ω |
| Headphone impedance | 16Ω-300Ω |
| SNR | ≥ 103dB |
| Dynamic range | 104dB |
| THD | ≤ 0.02% |
| Noise floor | 64uV |
| Crosstalk | 95dB |
| Fréquency response | 20Hz-20kHz (±1dB) |
| Bluetooth chip | QCC3031 |
| Supported Bluetooth codecs | SBC/AAC/aptX/aptX HD/aptX LL |
| Tone control | |
| General | |
|---|---|
| power supply | DC 12V/1.5A~3A |
| Color | Black |
| Dimensions | 166 x 105 x 35 mm |
| Package | 1x Fosi Audio P3 preamplifier 2x Tubes JAN 5654W 1x Bluetooth antenna 1x Power supply 12V/1.5A |
