FREE SHIPPING
EverSolo AMP-F2
Price is without EU VAT ( specific for each country added to check out )
WARRANTY: 3-YEAR DENAFRIPS & 2-YEAR OTHERS

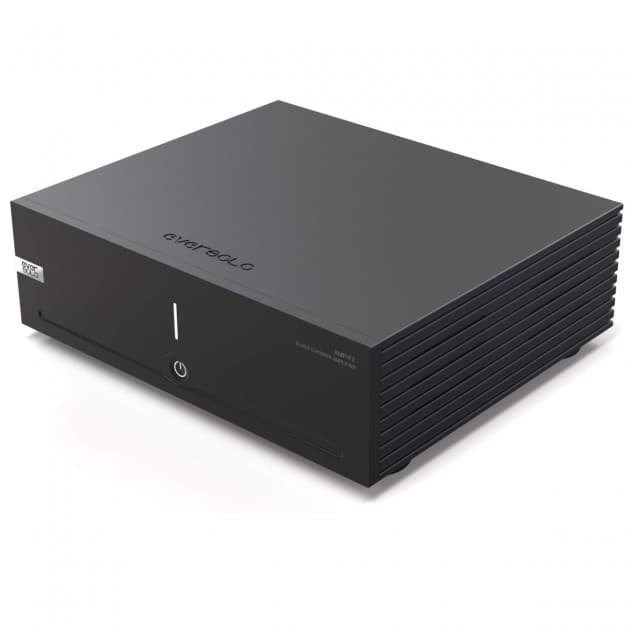

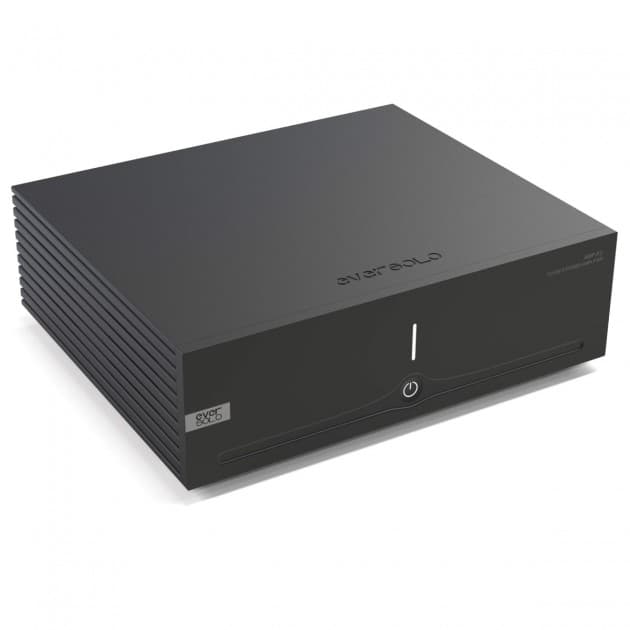

EverSolo AMP-F2
Class D Amplifier 2x250W 4Ω / 1x450W 2Ω
The EverSolo AMP-F2, developed in collaboration with the Starke Sound team, is a Class D amplifier based on the integration of the latter’s innovative NS600 module. As a result, it offers a high energy reserve, great dynamics and a highly accurate sound. The all-new SAPS switch-mode power supply provides the audio circuit with a clean electrical signal, ensuring very low noise and distortion levels. Bridgeable, the AMP-F2 is a versatile model that can be used in stereo or mono.
EverSolo AMP-F2: A generous power reserve
Based on a Class D NS600 amplifier module from Starke Sound, the EverSolo AMP-F2 is capable of delivering significant power, up to 2x250W RMS at 4 Ohm (1% THD). When the amplifier is used bridged (BTL), i.e. in mono, its power rises to 450W RMS at 2 Ohm (1% THD). This ability to support very low load impedances ensures sufficient power even in configurations using particularly demanding loudspeakers.
EverSolo AMP-F2: Incredibly accurate sound reproduction
The EverSolo AMP-F2’s NS600 module uses PurePath™ Ultra-HD technology and an advanced feedback design, incorporating an error correction function. This technology achieves an extremely low level of distortion across the entire frequency range for flawless sonic accuracy.
EverSolo AMP-F2: A generously dimensioned power supply
Featuring a high-performance 600W power supply, the EverSolo AMP-F2 stands out for its exceptional power management capabilities. With low levels of ripple and EMI (Electromagnetic Interference), this power supply ensures an output that is not only stable and powerful, but also remarkably clean and reliable. This is crucial for devices that are sensitive to power fluctuations, where precision and consistency are essential. Its intelligent design also contributes to greater energy efficiency, reducing the environmental footprint while ensuring optimum performance.
EverSolo AMP-F2: Low power consumption
The EverSolo AMP-F2’s energy efficiency doesn’t stop at low standby power consumption. This amplifier is designed to maximise energy efficiency at all levels of use. In active mode, it intelligently adjusts its power consumption according to the signal being processed, avoiding electricity wastage while delivering optimum audio performance. This dynamic power management not only helps to reduce energy costs for the user, but also plays a significant role in reducing the device’s ecological footprint.
What’s more, the integration of the latest-generation electronic components in the EverSolo AMP-F2 enables it to achieve an exceptional level of sonic precision, while maintaining a minimal energy footprint.
Finally, compliance with European Union ErP standards is a further guarantee of the quality and environmental responsibility of the EverSolo AMP-F2. These standards, which are among the strictest in the world, ensure that the device has been designed and tested to meet today’s environmental requirements.
EverSolo AMP-F2: Aluminum chassis and shielding
The design of the EverSolo AMP-F2 amplifier is enhanced by its modern, robust aluminium chassis, a choice that combines aesthetics and functionality. As well as its sleek, contemporary appearance, the aluminium chassis plays a crucial role in the protection and performance of the device. It offers resistance to impact and corrosion, guaranteeing a long service life. What’s more, this material is renowned for its ability to dissipate heat efficiently, helping to maintain an optimum temperature within the amplifier, which is essential for preserving the quality of the internal components over the long term. The chassis also acts as an effective shield, significantly limiting the impact of external electromagnetic interference on the AMP-F2’s sensitive circuitry. This shielding function is particularly important in environments rich in electronic equipment, where interference can affect signal quality and overall performance. In short, the aluminium chassis of the EverSolo AMP-F2 is more than just an aesthetic feature; it is a key component in ensuring the durability, reliability and high performance of the device.
EverSolo AMP-F2: Trigger input and output
Equipped with a 5-12V trigger input and output in 3.5mm jack format, the EverSolo AMP-F2 lets you create an automatic on/off chain between your various trigger-equipped devices. This makes for a seamless user experience, as your entire audio system can be switched on and off with a single press.
EverSolo AMP-F2: rear panel diagram
| 1 | Power on button |
| 2 | Power input |
| 3 | Input voltage switch |
| 4 | Speaker output #1 (BTL) |
| 5 | Operating mode switch (stereo / BTL) |
| 6 | Speaker output #2 |
| 7 | Single-ended RCA input #1 (BTL) |
| 8 | Single-ended RCA input #2 |
| 9 | Balanced XLR input #1 (BTL) |
| 10 | Balanced XLR input #2 |
EverSolo AMP-F2: A perfectly designed ecosystem
The EverSolo AMP-F2 amplifier is perfectly designed and optimized to accompany the brand’s other products. It’s the ideal companion for the EverSolo DMP-A6, EverSolo DMP-A6 Master Edition, EverSolo DMP-A6 Master Edition Upgrade and EverSolo DMP-A8 streamers, as well as the EverSolo DAC-Z8 and EverSolo DAC Z6 DACs.
Technical characteristics
| SPECIFICATIONS | |
|---|---|
| Product type | Amplifier |
| Amplification type | Class D |
| Output power | 2x250W RMS @ 4Ω (1% THD) 2x145W @ 8Ω (1% THD) |
| Output power (BTL) | 280W RMS @ 4Ω (1% THD) 450W RMS @ 2Ω (1% THD) |
| Inputs | Single-ended RCA Balanced XLR |
| Outputs | Speaker terminals (beryllium copper) |
| Gain | 21.5dB |
| Frequency response | 10Hz – 20kHz (-1dB) |
| Max. output current per channel | 16.5A 33A (BTL) |
| THD | 0.003% @ 10W, 1kHz |
| SNR | > 110dBA @ 4Ω, 260W |
| Input impedance | RCA : 11kΩ XLR : 22kΩ |
| Input sensitivity | 2.7V |
| Output impedance | 0.136Ω (5Hz à 100kHz) |
| Minimum load impedance | 0.8Ω |
| Damping factor | 100 |
| Balanced circuit | |
| Trigger 5-12V | Input and output |
| GENERAL | |
|---|---|
| Supply voltage | 115VAC – 230VAC (switchable) |
| Heat | 65BTU / hour |
| Consumption | Standby: ≤ 0.5W Idle: ≤ 14W Max: 900W |
| Dimensions | 270 x 228 x 80mm |
| Housing material | Aluminum |
| Weight | 3.65kg |
| Color | Black |
