Cayin CS-100A tube integrated amplifier EL 34

Description

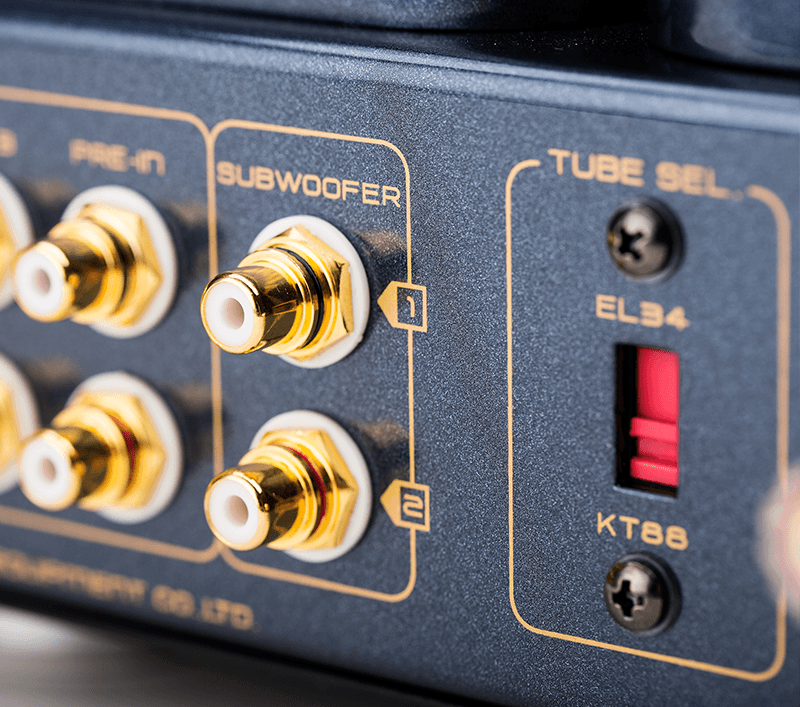

The use of EL34 in the output stage makes the tube amplifier Cayin CS-100A cheaper without significantly reducing the power output compared to the KT88 variant. This gives you one of the most powerful amps of its kind for a particularly affordable price. Apart from the eight EL34 tubes in the initial stage, everything remains the same. The work is done by 6SN7, 12AU7EH and 12BH7EH. High-quality Alps potentiometers, film resistors, ceramic bases and special audio capacitors plus a heavy toroidal transformer and system remote control complete the equipment. The Cayin CS-100A / EL34 supplies 75 watts per channel in class AB ultra-linear mode and 40 watts per channel in triode mode at its terminals (4 and 8 ohm taps are available). And if you ever want to upgrade the amplifier to KT88, the external bias adjustment will help you.

Specifications

• Frequency range: 8Hz-75kHz (-3dB)
• THD: 1% (1kHz)
• S / N ratio: 92dB
• Input impedance: 100kΩ
• Input sensitivity: 450 mV line input 1300mV pre-in
• Tubes: 6SN7 × 1, 12BH7EH × 2, 12AU7EH × 2, EL34 × 8
• Inputs: Line 1, Line 2, Line 3, Pre-In
• Circuit: Class A / B
• Housing color: anthracite metallic
• Front panel: silver or black
• Output power (RMS) at 4 and 8 ohms: 40W + 40W triode, 75W + 75W ultra linear
• Maximum power consumption: 480W
• Dimensions (W x D x H): 420mm × 394mm × 200mm
• Weight: 30kg
• Equipment: remote control, integrated bias measuring instrument
